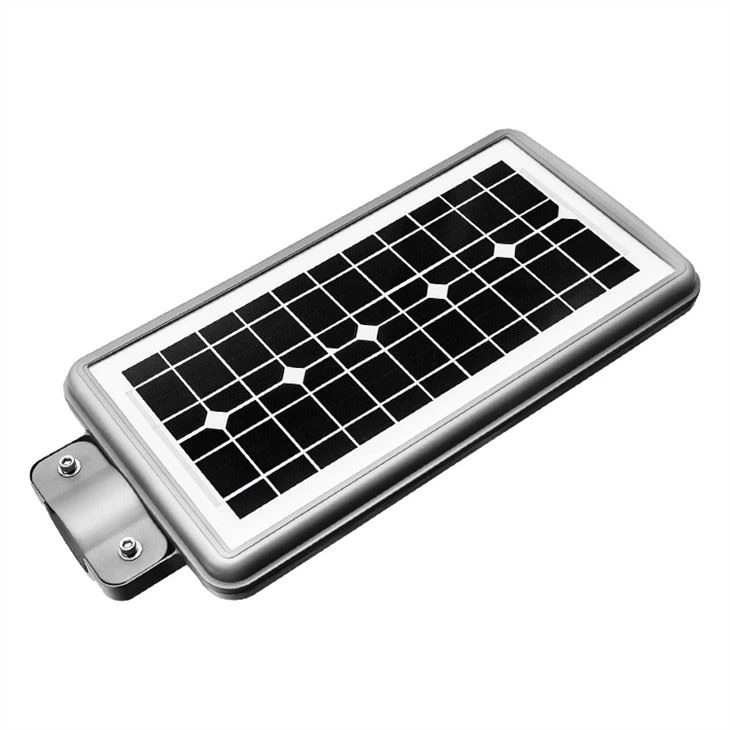

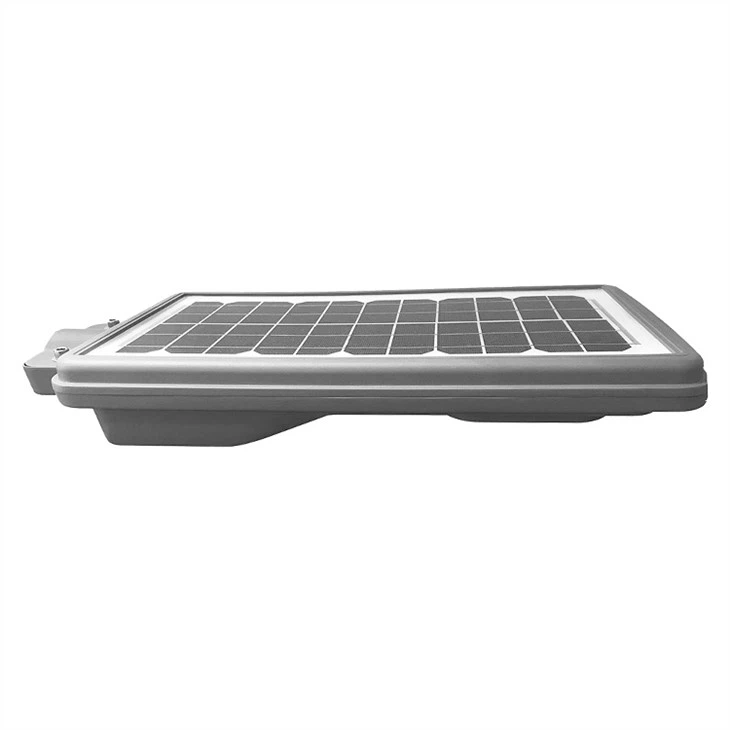

10W Solar Street Light
Description
Technical Parameters
| PRODUCT FEATURE |
TXLED-Mini10
Model | L(mm) | W(mm) | H(mm) | ⌀(mm) | Weight(Kg) |
10W | 505 | 235 | 85 | 40~60 | 6 |
| TECHNICAL DATA |
Model Number | TXLED-Mini10 |
Chip Brand | Lumileds/Bridgelux |
Solar Panel | One-side Mono 25% Charging Efficiency |
Driver Brand | Philips/Meanwell |
Input Voltage | DC12V/24V |
Luminous Efficiency | 160lm/W |
Color Temperature | 3000-6500K |
Lithium Battery | 3.7V, 8000mAh |
PIR Sensor | < 5m, 120° |
Material | Die Cast Aluminium Housing, Tempered Glass Cover |
Protection Class | IP65, IK08 |
Working Temp | -30 °C~+50 °C |
Certificates | CE, RoHS |
Working Time | (Lighting) 8h*3day / (Charging) 10h |
Warranty: | 5 Years |
| PRODUCT DETAILS |
Model | ISL-PB-M10W | ISL-PB-M20W | ISL-PB-M30W | ISL-PB-M50W |
Illumination | 15 LUMILEDS 800lm | 30 LUMILEDS 1600lm | 60 LUMILEDS 3200lm | 60 LUMILEDS 60000lm |
Solar Panel | 18V 10W | 18V 20W | 18V 35W | 18V 60W |
LifePO4 Battery | 3.2V/11Ah | 3.2V/16.5Ah | 3.2V/38.5Ah | 12.8V/30Ah |
Mounting Height | 2.5-3M | 2.5-3.5M | 3-5M | 4-6M |
Space Between Light | 5-8M | 8-12M | 10-15M | 15-20M |
System Life Span | ＞7 year | ＞7 year | ＞7 year | ＞7 year |
PIR Motion Sensor | Yes | Yes | Yes | Yes |
Body | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy |
Charging Time | 6-8hrs | 6-8hrs | 6-8hrs | 6-8hrs |
Working Time | 8hrs/day *3days back up | 8hrs/day *3days back up | 8hrs/day *3days back up | 8hrs/day *3days back up |
The human body sensing technology. it will work in 100% power when human are there, and 30% power when people are not there.
