2019 Factory Price IP67 5-Year Warranty AC LED Street Light Lanterns

2019 Factory Price IP67 5-Year Warranty AC LED Street Light Lanterns

With superior surge protection, these durable, independently housed drivers deliver consistent, high performance to luminaires even after multiple indirect lightning strikes -an ideal solution for OEMS that need reliable, adjustable output in a rugged independent form factor.
Send Inquiry

Description

Technical Parameters

Our company has perfect testing ability and high precision to ensure All In One Solar Street Light, battery operated street lights, decorative light posts outdoor quality. 'Bold innovation, originality, excellence' is our unremitting goal. In the course of many years of development, we have always been grateful for the care and support of customers.

1


Features:

Advantages:

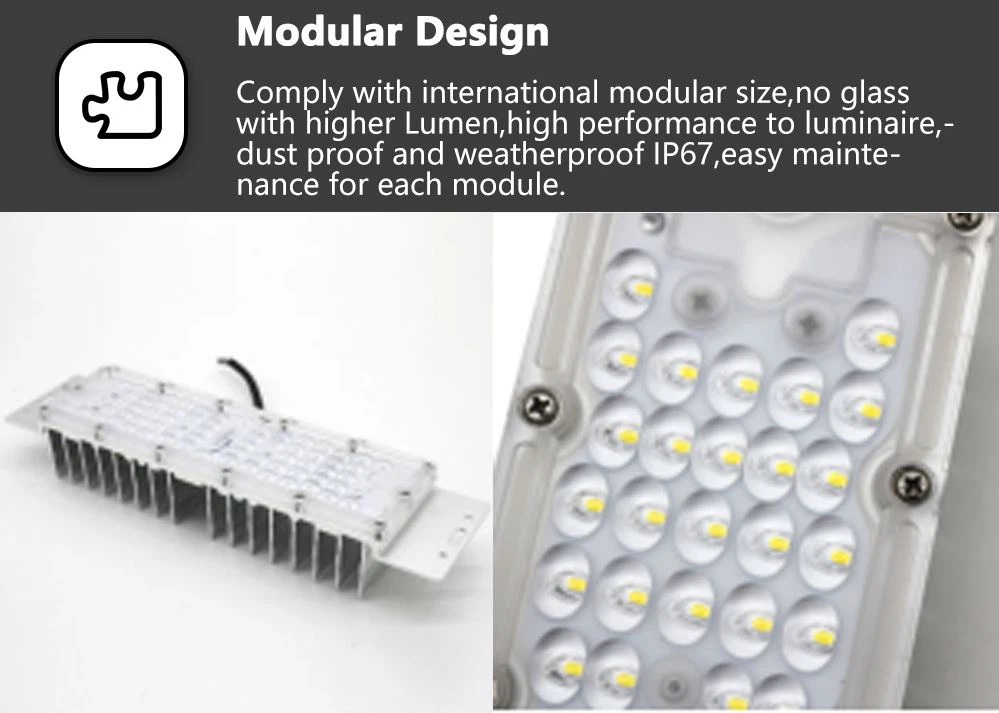

1. Modular Design:Comply with International modular size,30W-60W/module,with higher lighting efficiency.

2. Chip:Philips 3030/5050 chip and Cree Chip,up to 150-180LM/W.

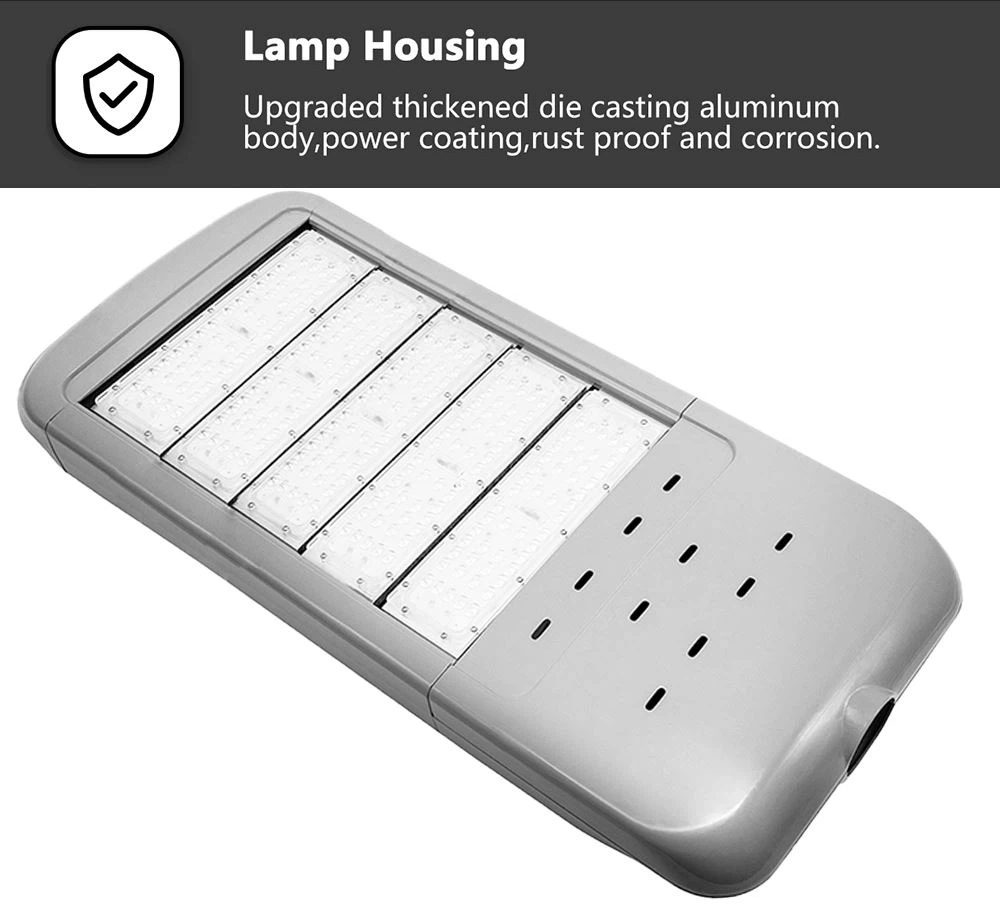

3. Lamp Housing:Upgraded thickened die casting aluminum body,power coating,rust proof and corrosion.

4. Lens:Follows the North American IESNA standard with wider lighting range.

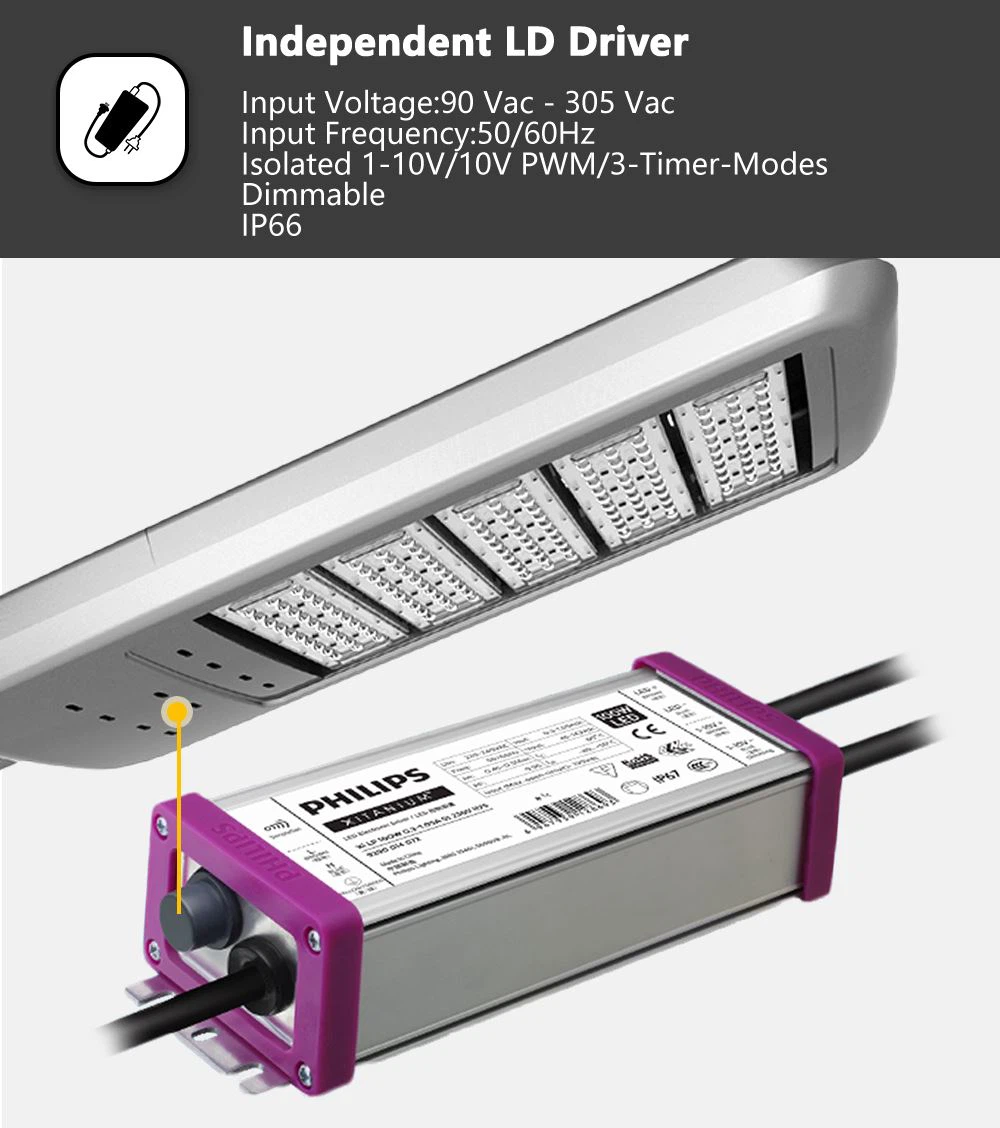

5. Driver:Famous brand Meanwell driver(P.S:DC12V/24V without driver,AC 90V-305V with driver)


1. Modular design:no glass with higher Lumen,dust proof and weatherproof IP67,maintenance easily.

2. Instant start, no flashing

3. Solid State, shockproof

4. No RF Interference

5. No mercury or other hazardous materials, accord with RoHs

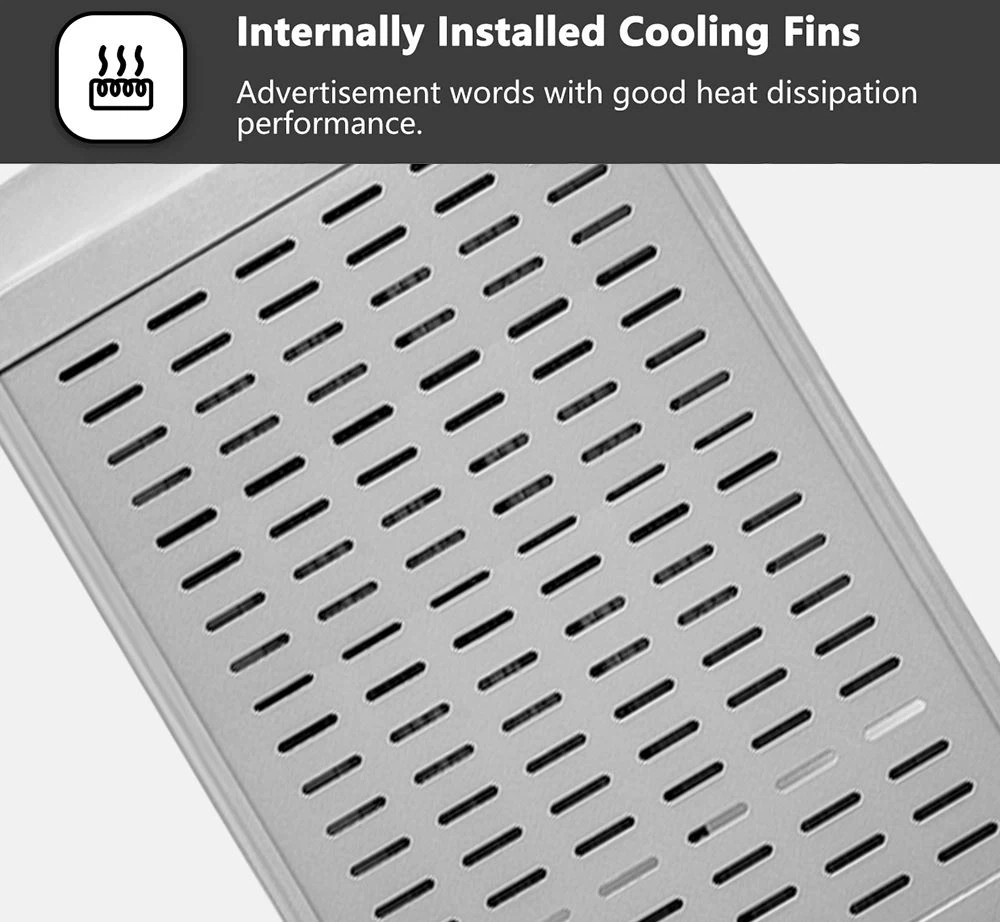

6. Great heat dissipation and guarantee the life of LED bulb

7. Use stainless screws for whole luminare,no corrosion and dust worry.

8. Energy saving and low power consumption and longer lifespan ＞80000hrs

9. 5 years warranty

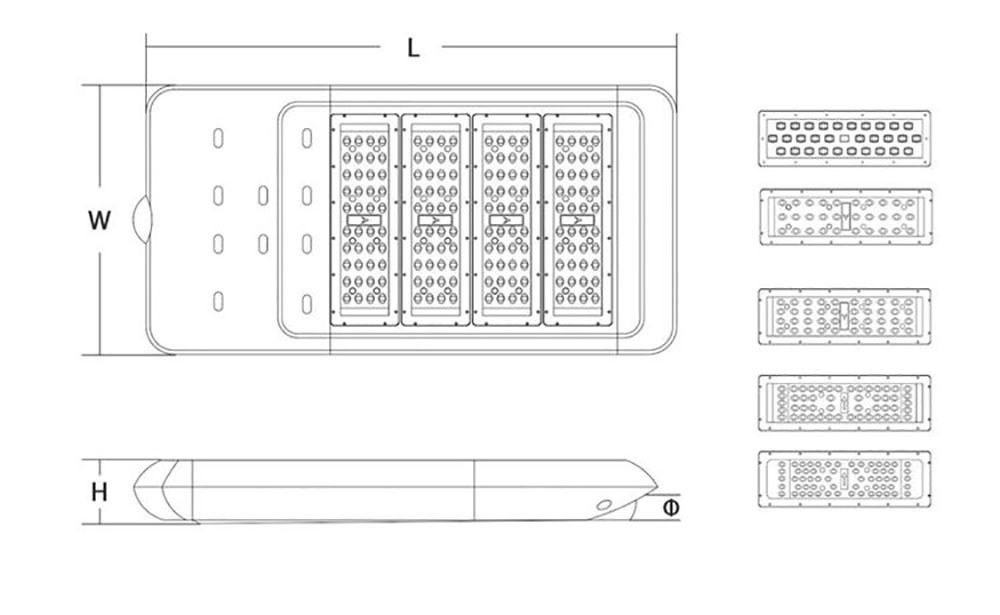

2.1

Model

L(mm)

W(mm)

H(mm)

⌀(mm)

Weight(Kg)

A

420

355

80

40~60

6

B

500

355

80

40~60

7

C

580

355

80

40~60

8

D

660

355

80

40~60

9

E

740

355

80

40~60

10

F

820

355

80

40~60

11

G

900

355

80

40~60

12

H

980

355

80

40~60

13

I

1060

355

80

40~60

14

J

1140

355

80

40~60

15



TECHNICAL DATA

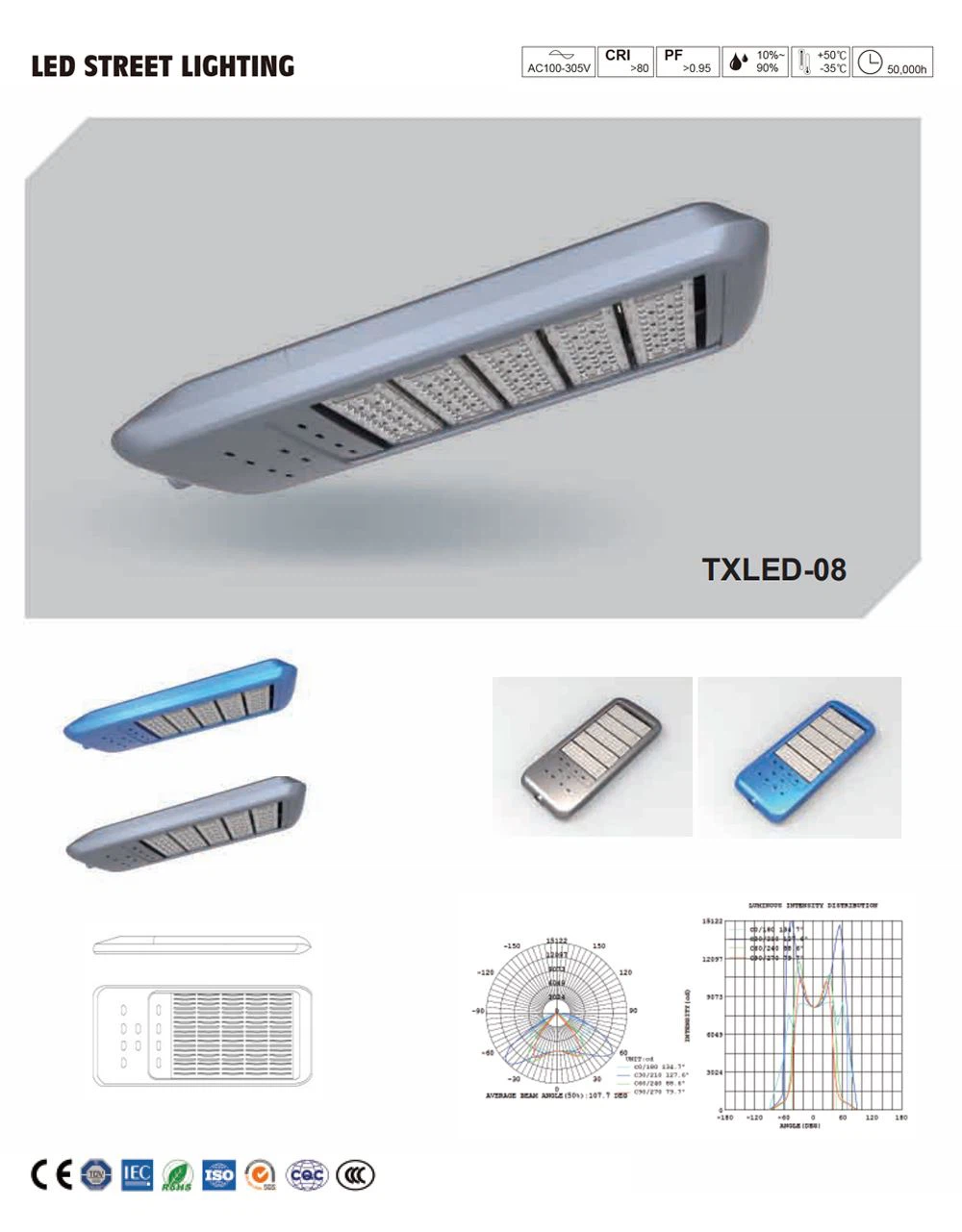

2


Model Number

TXLED-08 (A/B/C/D/E)

Chip Brand

Lumileds/Bridgelux

Light Distribution

Bat Type

Driver Brand

Philips/Meanwell

Input Voltage

AC90-305V, 50-60HZ, DC12V/24V

Luminous Efficiency

160lm/W

Color Temperature

3000-6500K

Power Factor

>0.95

CRI

>RA75

Material

Die Cast Aluminium Housing

Protection Class

IP67, IK10

Working Temp

-30 °C~+60 °C

Certificates

CE, RoHS

Life Span

>80000h

Warranty:

5 Years



PRODUCT DETAILS

3-8-1

3-8-2

3-8-2

3-8-3

3-8-4

3-8-5

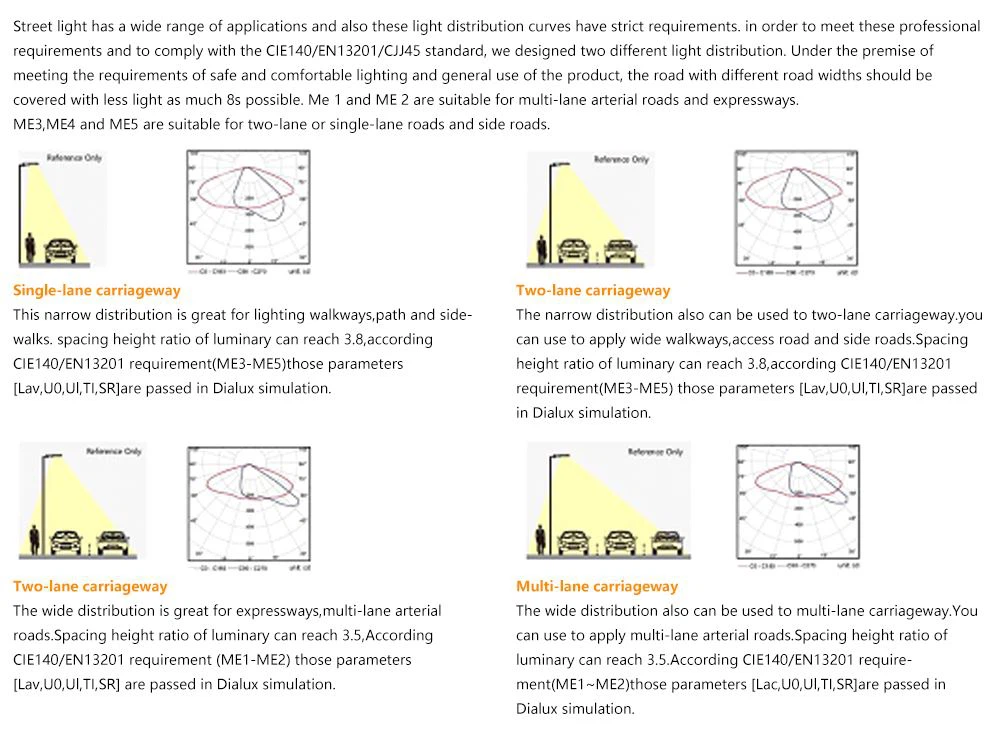

4


FACTORY


Solar panel equipments


-allinone-7.1 solar


Lighting equipments



-allinone-7.2 lighting


Light pole equipments


-allinone-7.3 light


Battery equipments


-allinone-7.4

-allinone-8

-allinone-82


CERTIFICATION


Product certification


-allinone-9.1product certified

Factory certification


-allinone-9.2 factory certified

-allinone-9


ABOUT US

A_


We sincerely hope that we can get your trust and recognition and become your qualified supplier of 2019 Factory Price IP67 5-Year Warranty AC LED Street Light Lanterns. We will be your best choice. We deeply experience that customers are the lifeblood of enterprise survival, quality is the magic weapon of enterprise victory, talent is the greatest wealth of enterprise, integrity is the soil of enterprise growth. We actively create professional solutions for every customer, relying on excellent equipment quality and professional technical services.

Hot Tags: LED Road Light, China, suppliers, manufacturers, factory, customized, wholesale, for sale, mushroom garden lights, 6 12m Single Arm Taper Round Light Pole, solar light for flag pole, metal street light pole, commercial led parking lot lights Pole, white outdoor light post
