Yaye 18 Competitive Price 120 Watt COB LED Street Light / COB 120 Watt LED Street Lighting with Ce/RoHS
Description
Technical Parameters
If you have any problem or need in street lights, street lights in the city, porch outdoor lights please communicate with us in time. Our company takes 'innovation, creating higher value for customers' as its responsibility. We wholeheartedly create our own brand, so that global customers can enjoy high-quality products and first-class service and achieve a win-win situation. We advocate good and effective communication, respect each other's labor, and respect every companion who achieves results through his or her own efforts.
Features: | Advantages: |

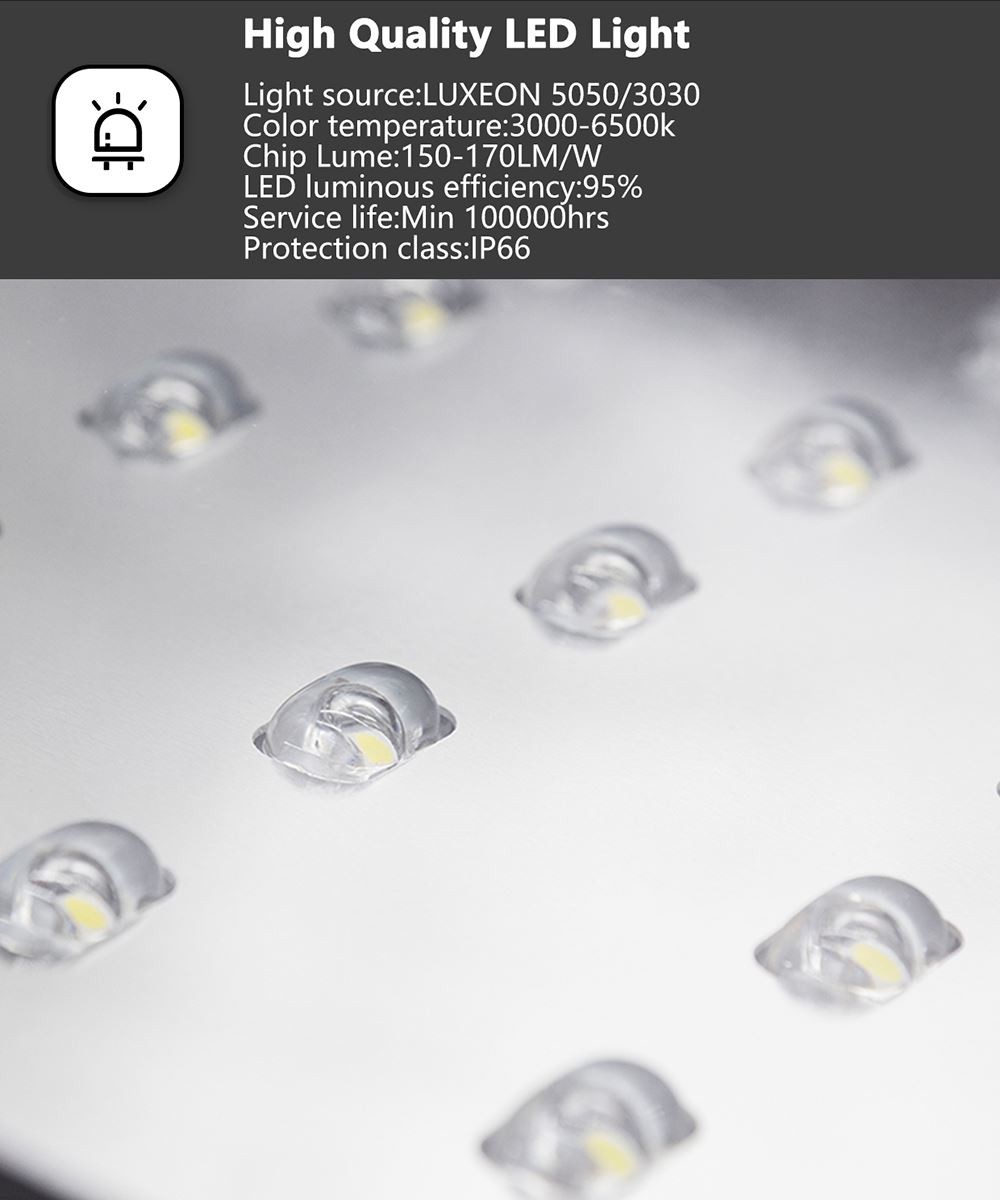

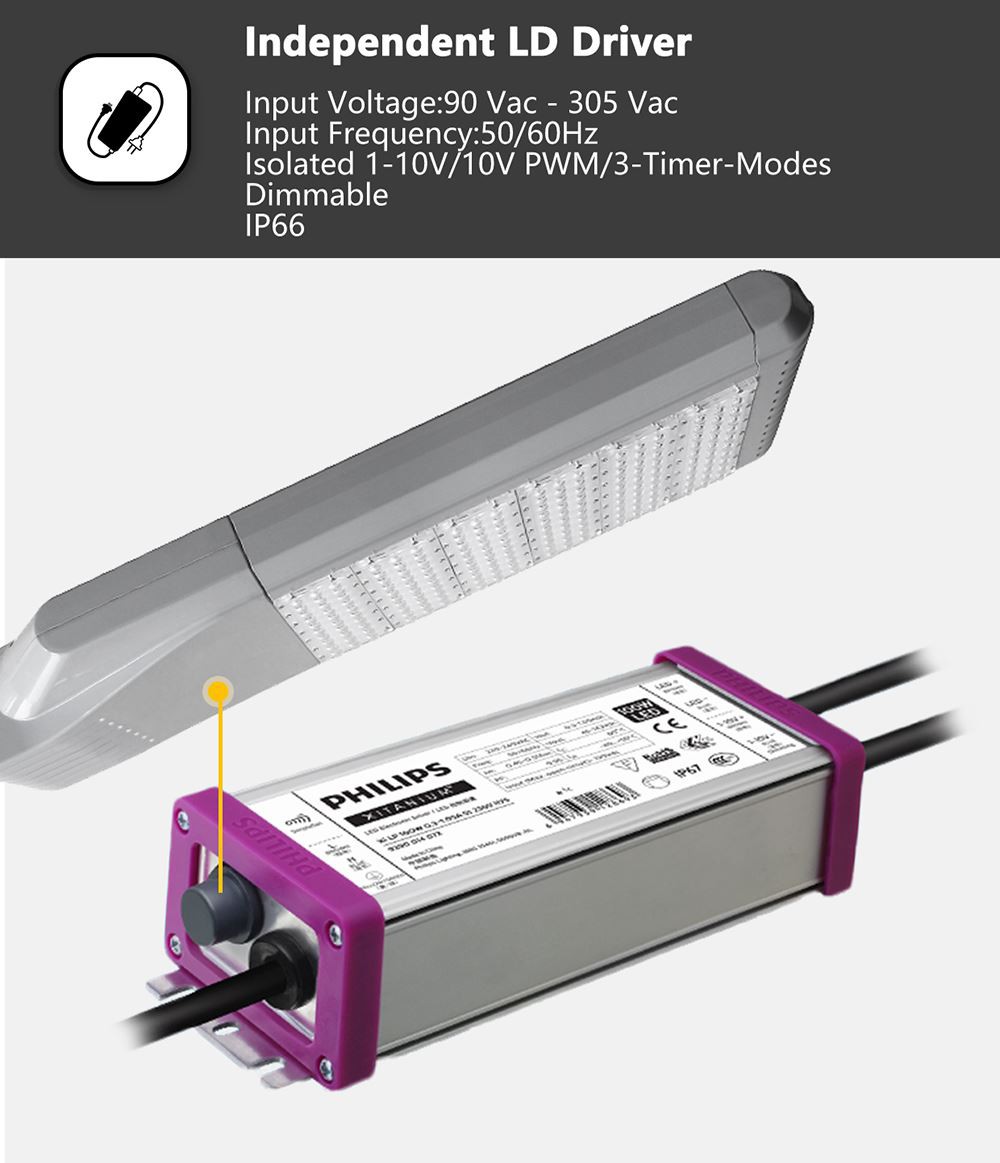

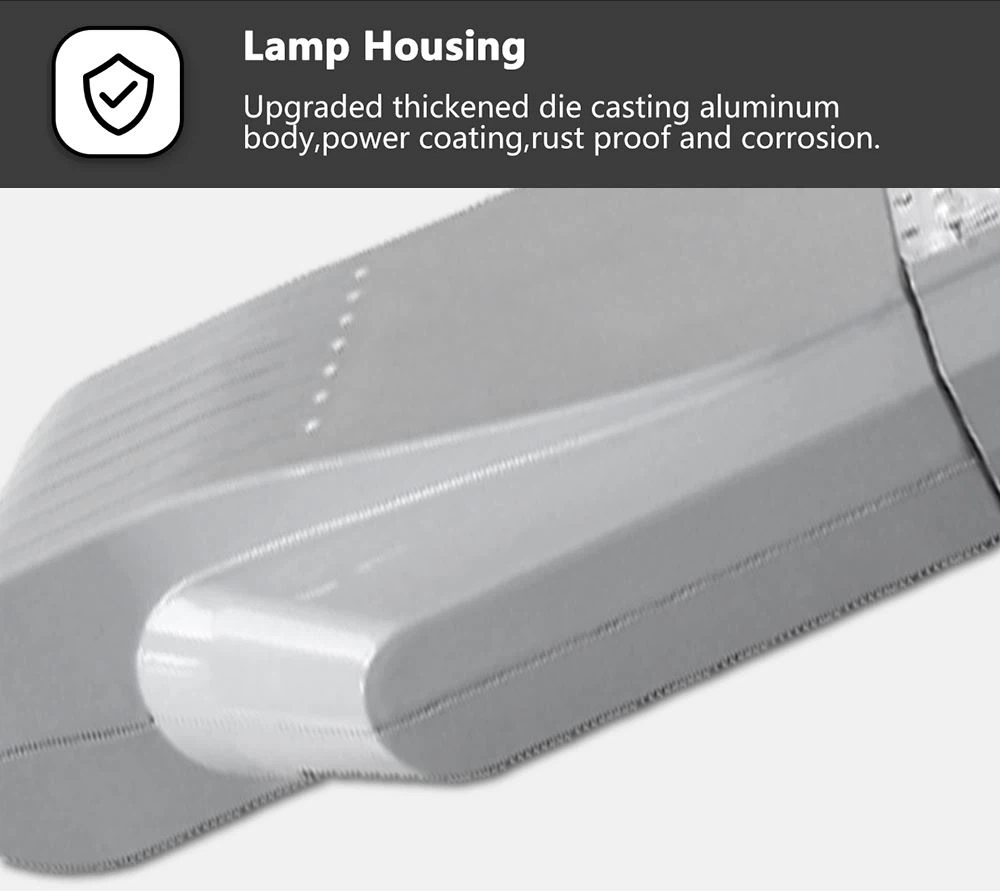

1. Modular Design:30W-60W/module,with higher lighting efficiency. 2. Chip:Philips 3030/5050 chip and Cree Chip,up to 150-180LM/W. 3. Lamp Housing:Upgraded thickened die casting aluminum body,power coating,rust proof and corrosion. 4. Lens:Follows the North American IESNA standard with wider lighting range. 5. Driver:Famous brand Meanwell driver(P.S:DC12V/24V without driver,AC 90V-305V with driver) | 1. Modular design:no glass with higher Lumen,dust proof and weatherproof IP67,maintenance easily. 2. Instant start, no flashing 3. Solid State, shockproof 4. No RF Interference 5. No mercury or other hazardous materials, accord with RoHs 6. Great heat dissipation and guarantee the life of LED bulb 7. Use stainless screws for whole luminare,no corrosion and dust worry. 8. Energy saving and low power consumption and longer lifespan ＞80000hrs 9. 5 years warranty |
Model | L(mm) | W(mm) | H(mm) | ⌀(mm) | Weight(Kg) |
A | 570 | 355 | 155 | 40~60 | 9.7 |
B | 645 | 355 | 155 | 40~60 | 10.7 |
C | 720 | 355 | 155 | 40~60 | 11.7 |
D | 795 | 355 | 155 | 40~60 | 12.7 |
E | 870 | 355 | 155 | 40~60 | 13.7 |
F | 945 | 355 | 155 | 40~60 | 14.7 |
G | 1020 | 355 | 155 | 40~60 | 15.7 |
H | 1095 | 355 | 155 | 40~60 | 16.7 |
I | 1170 | 355 | 155 | 40~60 | 17.7 |
TECHNICAL DATA
Model Number | TXLED-06 (A/B/C/D/E/F/G/H/I) |
Chip Brand | Lumileds/Bridgelux |
Light Distribution | Bat Type |
Driver Brand | Philips/Meanwell |
Input Voltage | AC90-305V, 50-60HZ, DC12V/24V |
Luminous Efficiency | 160lm/W |
Color Temperature | 3000-6500K |
Power Factor | >0.95 |
CRI | >RA75 |
Material | Die Cast Aluminium Housing |
Protection Class | IP65, IK10 |
Working Temp | -30 °C~+60 °C |
Certificates | CE, RoHS |
Life Span | >80000h |
Warranty: | 5 Years |
PRODUCT DETAILS
FACTORY
Solar panel equipments
Lighting equipments
Light pole equipments
Battery equipments
CERTIFICATION
Product certification
Factory certification
