Street Lamp Pole

Name: Street Lamp Pole
Brand: Phoebus
SKU: 140616876

Hot dip galvanization with thickness of 80-100µm average. Length: within 15 meters once forming without slip joint. Mounting Height: 3-12M( As your demand ).

Send Inquiry

Description

Technical Parameters

PRODUCT DATA

Product Name	Common AC LED Street Lighting Pole Diameter(solar lighting pole with bigger diameter)								High Mast Pole
Material	Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52
Height	4M	5M	6M	7M	8M	9M	10M	12M	15M-35M
Dimensions(d/D)	60mm/140mm	60mm/150mm	70mm/150mm	70mm/170mm	80mm/180mm	80mm/190mm	85mm/200mm	90mm/210mm	120-300mm/290-710mm
Thickness	3.0mm	3.0mm	3.0mm	3.0mm	3.5mm	3.75mm	4.0mm	4.5mm	5-10mm
Flange	260mm*12mm	260mm*14mm	280mm*16mm	300mm*16mm	320mm*18mm	350mm*18mm	400mm*20mm	450mm*20mm	500-1200mm*20-30mm
Tolerance of dimension	±2/%
Minimum yield strength	285Mpa
Max ultimate tensile strength	415Mpa
Anti-corrosion performance	Class II
Against earthquake grade	10
Color	Customized
Surface treatment	Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II
Shape Type	Conical pole, Octagonal pole,Square pole, Diameter pole
Arm Type	Customized: single arm,double arms,triple arms,four arms
Stiffener	With big size to strength the pole to resist the wind
Powder coating	Thickness of powder coating is 60 - 100um. Pure polyester plastic powder coating is stable and with strong adhesion & strong ultraviolet ray resistance. The surface is not peeling even with blade scratch (15×6 mm square).
Wind Resistance	According to local weather condition, General design strength of wind resistance is ≥150KM/H
Welding Standard	No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.
Hot-Dip Galvanized	Thickness of hot-galvanized is 60 - 100um. Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test.
Anchor bolts	Optional
Material	Aluminium,SS304 is available
Passivation	Available

pole

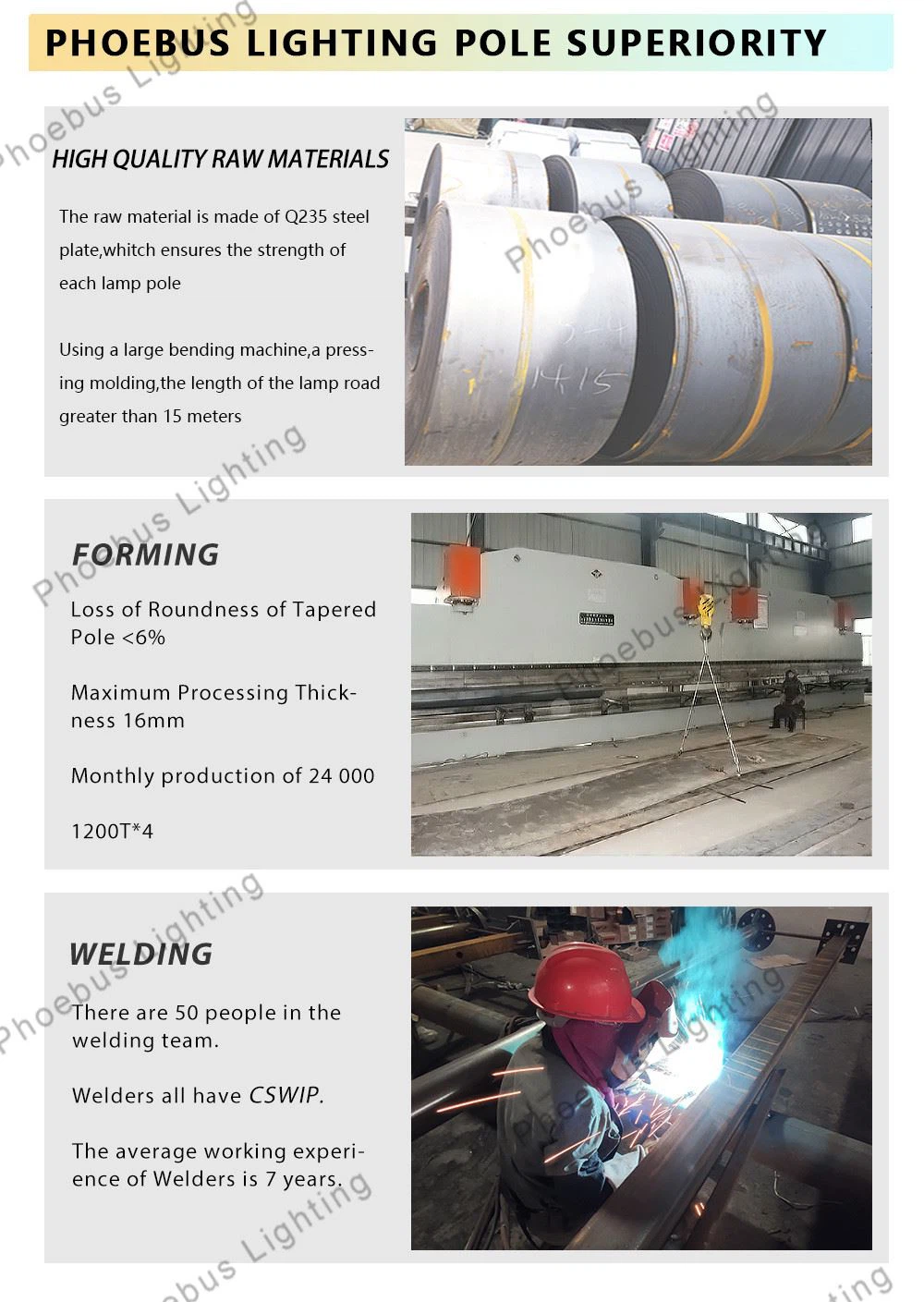

Phoebus Lighting Pole Manufacture Process

Phoebus Lighting Pole Manufacture Process

12401

1. Q: Are you a factory or trading company?

A: We are factory established for 12 years, specialized in outdoor lights.

2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Yangzhou City, Jiangsu Province, China, about 2 hours drive from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!

3. Q: What's your main product?

A: Our main product is Solar Street Light, LED Street Light, Garden Light, LED Flood Light, Light Pole And All Outdoor Lighting

4. Q: Can I try a sample?

A: Yes. Samples for testing quality is available.

5. Q: How long is your lead time?

A: 5-7 working days for samples; around 15 working days for bulk order.

6. Q: What's your shipping way?

A: By air or sea ship are available.

7. Q: How long is your warranty?

A: 5 years for outdoor lights.
