6M Galvanised Steel Pole
Turn On/off Automatically 6M Galvanized Pole 40W LED Luminaire Solar Street Lighting

6M Galvanised Steel Pole

Name: 6M Galvanised Steel Pole
Brand: Phoebus
SKU: 152399620

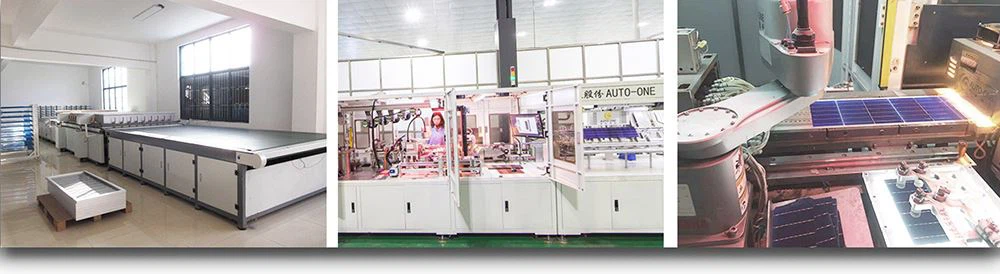

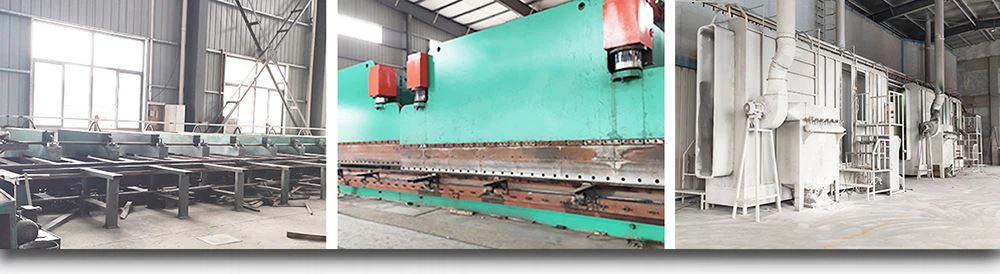

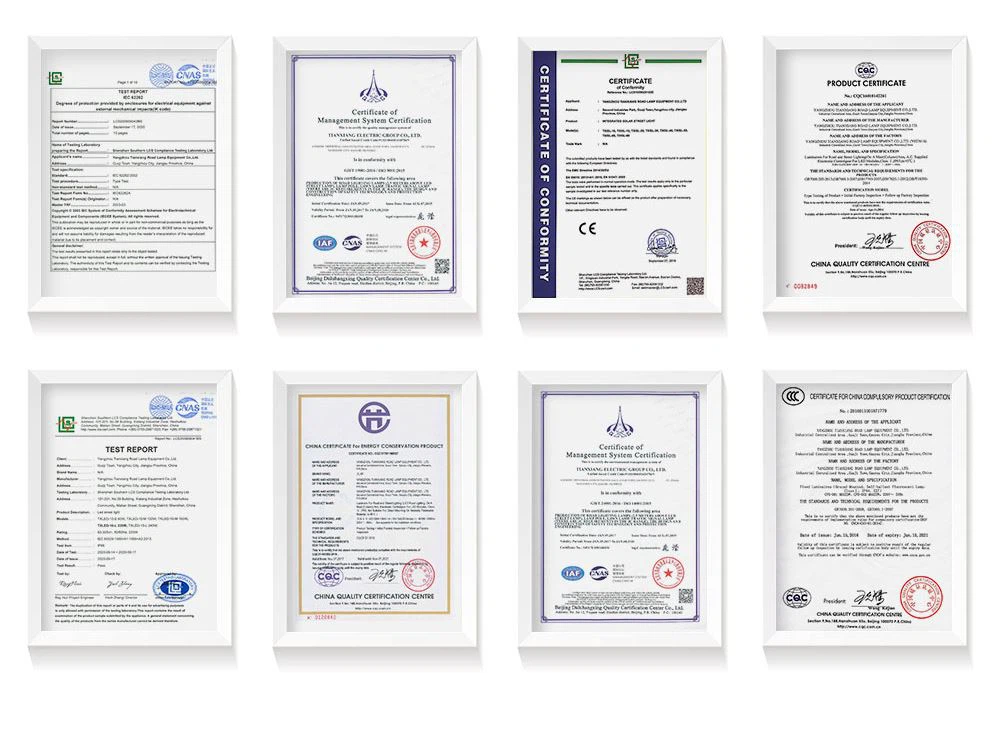

FACTORY Solar panel equipments Lighting equipments Light pole equipments Battery equipments CERTIFICATION Product certification Factory certification

Send Inquiry

Description

Technical Parameters

Phoebus Light make all solar street light designs with the full considerations of the selected site climate data and project requirement, provided the accurate energy calculation and detailed analysis of the solar system configuration based on 7 factors:

√ Design Criteria;

√ Radiation Data;

√ Shading Factor;

√ Latitude;

√ Weather;

√ Dust;

√ Wind Speed;

√ Temperature;

√ Humidity；

Solar Conditions

Annual Averaged Insolation Incident On A Horizontal Surface (kWh/m2/day)
	Oceania	Asia	Africa	America	Europe
22-year Average	5.343	4.979	5.415	5.322	3.497

Equivalent

Equivalent Number Of NO-SUN Or BLACK Days (days)
	Oceania	Asia	Africa	America	Europe
7 day Average	3.468	2.847	2.388	2.782	3.474

General Specifications

Component		6M Pole 40W Solar Street Light design	Life Span	QTY
1	Solar Panel	120W/18V,Mono Crystalline,>19.12% Efficiency.	>25years	1pc
2	LED Lamp	40W-12V,Phillips Lumileds 3030,160LM/W,3700K-6500K,IP66-IP68	>80,000hrs	1pc
3	Lighting Pole	6M conical,single arm,Q235 Steel,Hot dip galvanized,Powder coating,Rust Proof.	>25years	1pc
4	Solar Panel Bracket	Detachable,Q235 steel,Hot dip galvanized,Powder coating,Rust Proof.	>25years	1pc
5	Foundation Kit	Detachable,Q235 steel.	>25years	1pc
6	Charge Controller	15A, Automatic dusk to dawn auto dimming	>8years	1pc
8	Battery	Option 1:100AH/12V GEL battery,Free Maintenance,Deep cycle,Gel type.	>10years	1pc
8	Battery	Option 2:66.5AH/12.8V LifePO4 battery,Lighter Weight,Longer Cycle Lifespan,Lithium type.	5~10years	1pc
9	Battery Box	GEL battery:Hanging type for anti theft,material:engineering steel,hold 1pc*100AH GEL battery; Top and underground,bottom battery box type for optional	>5years	1pc
9	Battery Box	Lithium battery:top or hang on the pole,hold 1 battery.	>10years	1pc
10	Cables	2*1.5mm²,from LED lamp to controller	>20years	3-8M
		2*2.5mm²,from solar panel to controller		2-8M
		2*2.5mm²,from solar battery to controller		2-5M
● Working condition:10-12hrs/night at intelligent working mode*2-3 overcast days,5.0KWH/M²/day. ● Noted:pole height 3M to 12M for solar street light choosing,15M-50M for high mast pole. ● LED power 15W to 150W for solar street light choosing.

Components Features and Advantages

Luminare
1. 12V/24V DC 2. Philips LED chip efficiency >160lm/W. 3. CRI: >75Ra 4. Color Temp.: 4000k-6500k (optional ). 5. No mercury content, according to RoHS Standard 6. Die-casting aluminum 7. High purity tempered glass 8. Easy to replace luminaire elements are allowed 9. Life Span is more than 80,000 hours 10. Warranty 5 years 11. Standard CE/ROHS/IP66/IK10/IEC/EN/IES/LM80

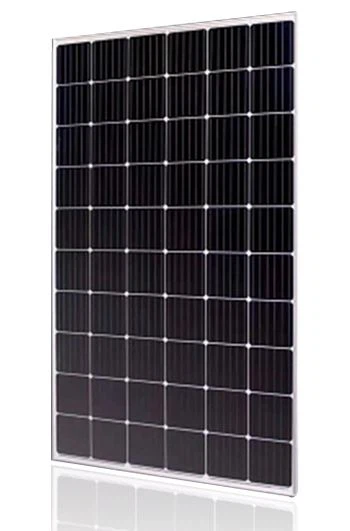

Solar panel
1. A-grade Mono crystalline silicon 2. Integrated diodes to prevent reserve current 3. IP66 rating and strong anti-aging to last > 25 years. 4. Adopt ultra white low-iron toughened glass with 98% light transmittance, which can resist hail stone and impact of ice and snow with max 5400Pa. 5. Factors (25% losses) have been applied to considering the dirty, power decay losses and angle losses in winter time. 6. The efficiency of the solar panels is up to max 19.12%. 7. Standard TUV/CQC/IEC
Battery
1. Gel battery,sealed type. 2. Minimum 2,500 deep cycles at 25% DOD 3. Minimum 2,000 deep cycles at 50% DOD Minimum 1,500 deep cycles at 70% DOD 4. Self-discharge less than 1% monthly 5. Free maintenance 6. Life Span 5-10 years 7. Standard CE/CQC
Charge Controller
1. 12/24V DC automatically according to the system 2. Timing Control system which allows to change the configuration setting, including light performance level, power and stage-length. This system allows to save energy in order to increase the lifespan of the batteries 3. Automatic turn on/off and modify the timer and diming function 4. Over charging/discharging protection 5. Waterproof IP68 rating 6. Standard CE/ROHS

Battery Box
1. Underground type,plastic,with PVC 2. Optional type: top,hanging and at the base of foundation ),made of matel. 3. IP65 to prevent any water going inside and heat emission through the wire tube. 4. For metal box on pole, we usually design vent for heat emission and galvanized steel last > 25years
Pole Set
1. This part including pole,panel bracket and lamp arm. 2. Material:hot-dip galvanized steel Q235 3. The surface is polymerized epoxy powder coated to prevent any corrosion, last >25 years 4. The pole is bolted to the anchor plate and the anchor plate is embed in the concrete base 5. Wind Resistance ＞160KM/H, even in the worst conditions. 6. Standard test report
Cable
Item	Type	Specification
connecting solar panel and controller	RVV	2.5mm²
connecting solar panel	RVV	2.5mm²
connecting battery	AGR	2.5mm²
connecting controller and battery	AGR	2.5mm²
connecting Lamp and controller	RVV	1.5mm²
Above cables are all copper core wire inside
Anchor Bolts
1. This part optional. 2. Material:engineering steel Q235,hot-dip galavanized/non galavanized for alternative. 3. But mostly is non galavanized. 4. Folding anchor bolts to save the space is available.
