Conical Street Light Pole

Phoebus conical street light poles are integrally rolled and shaped from high-quality Q235 steel. The cone design improves wind resistance and improves the structure. The whole pole is treated with anti-corrosion treatment twice, including hot-dip galvanization and electrostatic powder coating, which can make the pole resist sun and rain, and the outdoor service life is up to 20 years, and it is not easy to rust or fade. Pole height can be customized from 3-12m to meet your needs. The flange base is solid and can be used in many LED street lights and solar street lights, such as municipal roads, residential areas, scenic squares, rural roads, and other scenarios. Supported custom light arms and pre-installed accessories. The craftsmanship is neat, the welding is smooth and burr-free, and the installation is convenient, making it the preferred pole for outdoor lighting projects.

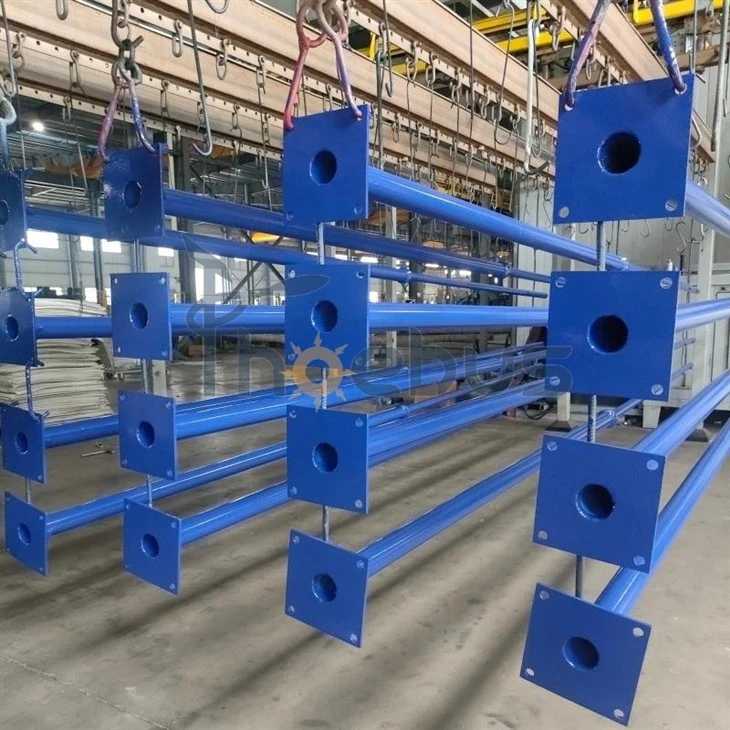

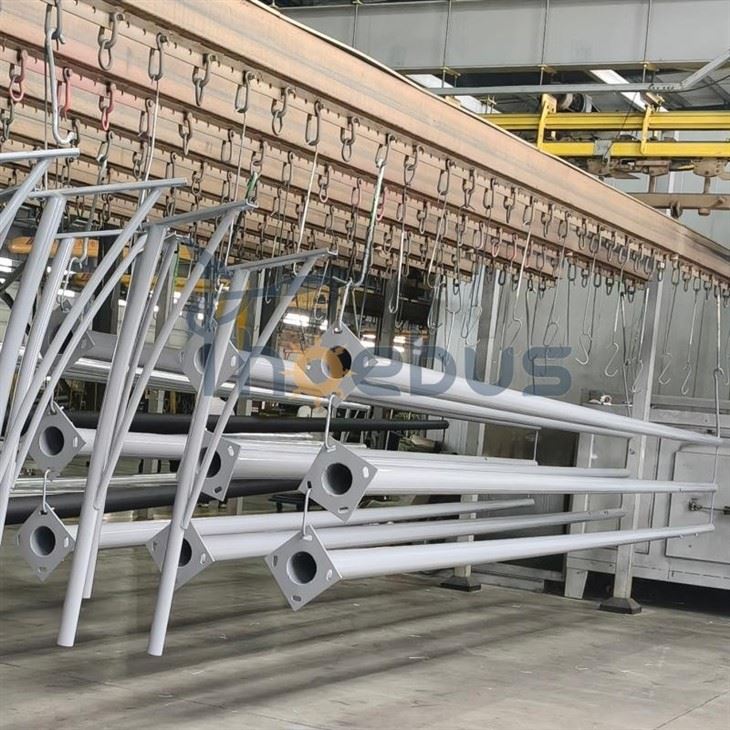

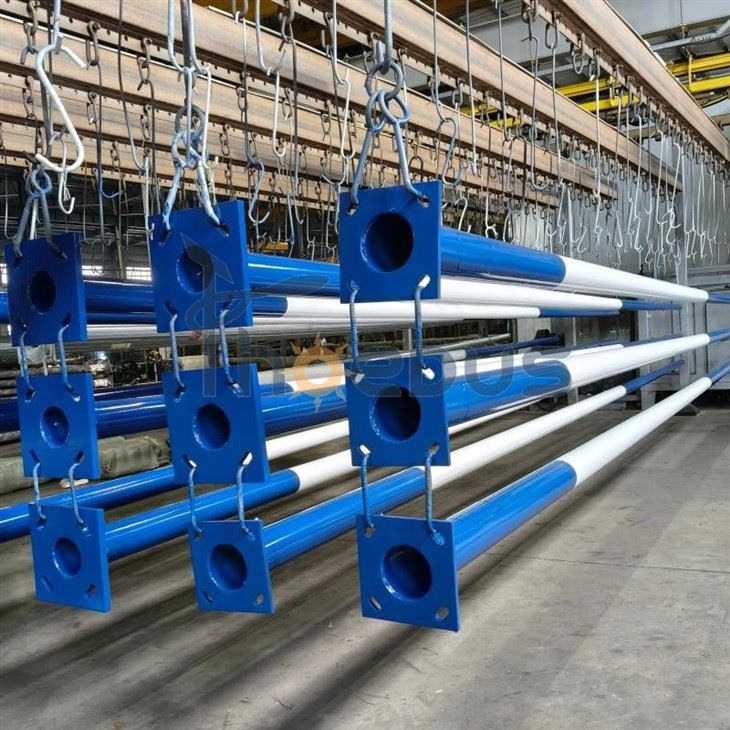

MANUFACTURE PROCESS

APPLICATION

1. Municipal traffic roads
Conical street light poles are suitable for urban trunk roads, urban and rural expressways, and rural trunk roads. The tapered construction is stable and durable, with low wind resistance, and is suitable for conventional road lighting.
2. Leisure landscape area
Conical street light poles are suitable for parks, scenic spots, riverside walks, and city squares. They are simple and elegant in appearance and take both lighting and beautiful landscapes into account.
3. Residential and commercial supporting facilities
Conical street light poles are appropriate for residential areas, commercial streets, and parking lots. They are highly customizable and meet the park lighting needs.
4. Industrial campus site
Conical street light poles are ideal for industrial parks, school playgrounds, and factory roads. They perform well in bearing loads and can be used with solar street lights and LED street lights.

DETAILS

POLE SHAPE(Customized Service)

Lighting Pole Configuration for Factory Areas and Parking Lots
Lighting Pole Configuration for Factory Areas and Parking Lots
For factory premises and parking lots, conical street light poles 6-8 meters high with a single cantilever design are preferred to maintain a neat and organized layout. Poles on one side of the main road, in parking areas, at intervals of 8-10 meters, with high-power LED streetlights to ensure adequate illumination and no dark areas. The poles are hot-dip galvanized for corrosion resistance and suitable for dusty and humid factory environments. The poles have thickened flanged bases for stability against vehicle collisions. Monitoring and charging pile brackets can be added according to needs, and the wiring is neatly and beautifully integrated into the poles. Overall, it is relatively cheap and easy to install. It can serve the purpose of traffic lighting as well as the security lighting needs of parking areas.

PACKING CASE

INSTALLATION INSTRUCTIONS
I. Foundation Construction
1. According to the height of conical street light poles, the corresponding foundation pit is excavated, the reinforced concrete base is pre-embedded, the flange bolt holes are reserved, and the leveling is carried out.
2. Secure the pre-embedded anchor bolts in place. Pour the concrete, then let it cure for at least 7 days to make sure the load-bearing capacity of the foundation is up to standard.
II. Pole Erection
1. Before lifting, the conical street light poles shall be checked for deformation, and the galvanized and powder-coated layers shall be checked. Run cables through the pole from the bottom before lifting.
2. Lift the pole smoothly with a crane, aligning it with the base anchor bolts, and slowly lower it, adjusting the pole to be vertical and without tilt.
3. Sequentially tighten the flange nuts. Reinforce the pole diagonally in stages until the pole is stable and does not wobble.
III. Light Fixture and Wiring Installation
1. Fix the light arms and LED streetlights/solar lights on top of the conical street light poles, tighten fixing screws, and make waterproof sealing.
2. Wire the inside of the pole together and tape the wire ends with insulating waterproof tape. Seal up the junction box to protect it from moisture.
IV. Final Inspection and Acceptance
1. Clean the scratches on the surface of conical street light poles, re-measure the verticality and test the power supply, and make sure that the lights are lit normally.
2. Check the tightening of all bolts; Fill the foundation pit with soil and compact; Handover the project after completion.

FACTORY

EXHIBITION

FAQ

1. Q: Are you a factory or trading company?

A: We are factory established for 12 years, specialized in outdoor lights.

2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Yangzhou City, Jiangsu Province, China, about 2 hours drive from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!

3. Q: What's your main product?

A: Our main product is Solar Street Light, LED Street Light, Garden Light, LED Flood Light, Light Pole And All Outdoor Lighting

4. Q: Can I try a sample?

A: Yes. Samples for testing quality is available.

5. Q: How long is your lead time?

A: 5-7 working days for samples; around 15 working days for bulk order.

6. Q: What's your shipping way?

A: By air or sea ship are available.

7. Q: How long is your warranty?

A: 5 years for outdoor lights.
