Public Light Pole

Public light poles are hot-dip galvanized for wind and corrosion resistance. Height can be adjusted according to your requirements. They are suitable for solar/electric street lights and can be equipped with surveillance cameras and traffic lights. They are outdoors for as long as twenty years.
Send Inquiry
Product Introduction



Steel Lamp Post

Phoebus specializes in manufacturing public light poles. The main body is made of high-quality Q235 steel with a double anti-corrosion process of hot-dip galvanizing and electrostatic powder coating; they are rust-proof and rain-proof and have a service life of over 20 years outdoors. Standard heights range from 6 to 12 meters, are customizable, and a full range of specifications are available. Supports straight poles, curved poles, and exclusive art pole designs. The poles are smoothly welded with a steady flange base and good wind resistance. They can be used with AC LED street lights and solar LED street lights. Interfaces can be pre-installed to add monitoring systems, charging piles, and traffic lights. Welcome to custom logos and color schemes based on drawings submitted. Before leaving the factory, all poles are thoroughly tested for defects. A steady supply allows for ample bulk purchases for municipal roads, residential areas, parks, scenic areas, and other outdoor applications.

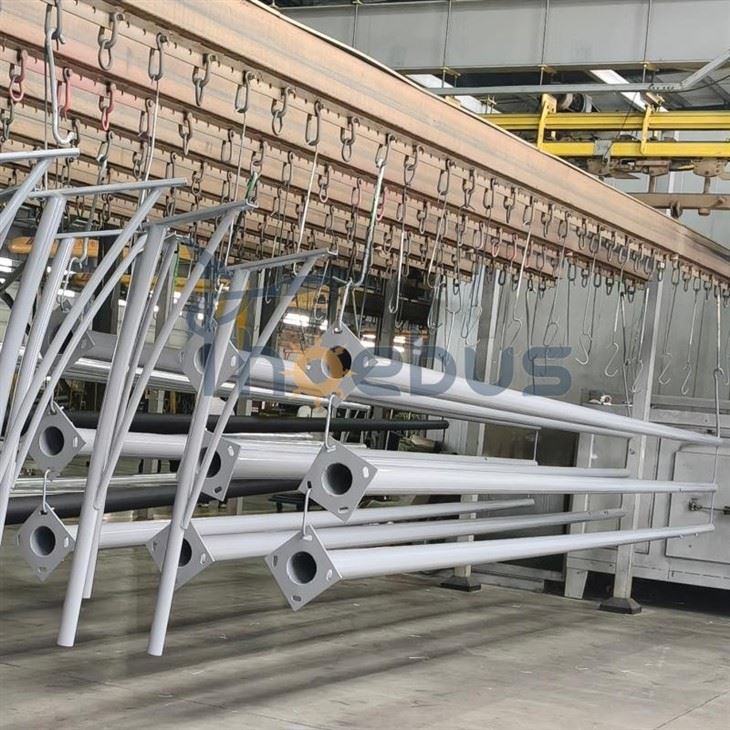

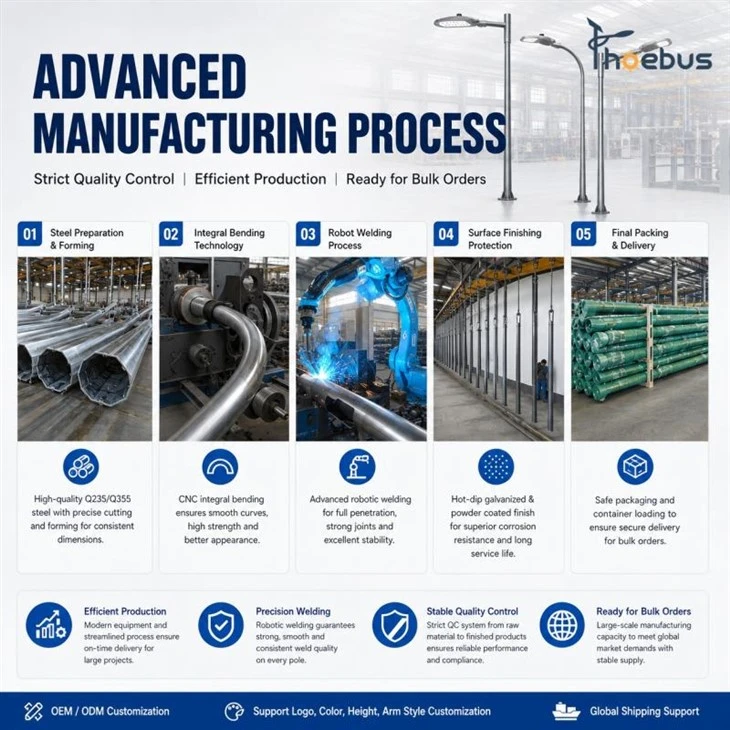

MANUFACTURE PROCESS

light pole manufacturing process



DETAILS

Galvanized Light Pole

POLE SHAPE(Customized Service)

Steel Lamp Post FactoryStreet-light-pole1

Street-light-pole-2



APPLICATION

1. Municipal Transportation:
Suitable for urban main roads, rural roads, highway auxiliary roads, and intersections; Public light poles can be used with streetlights and traffic lights to ensure safe driving at night.
2. Residential Parks:
Suitable for residential communities, office buildings, industrial parks, schools, and hospitals, providing basic lighting for internal roads and parking lots.
3. Recreation and Tourism:
Suitable for urban parks, riverwalks, scenic areas, and plazas with lighting and landscaping.
4. Commercial and Industrial Areas:
Suitable for commercial streets, logistics areas, and outdoor plazas, with the option of installing surveillance cameras and charging stations for multi-functional integration.



PRODUCT SHOW

Phoebus street light pole

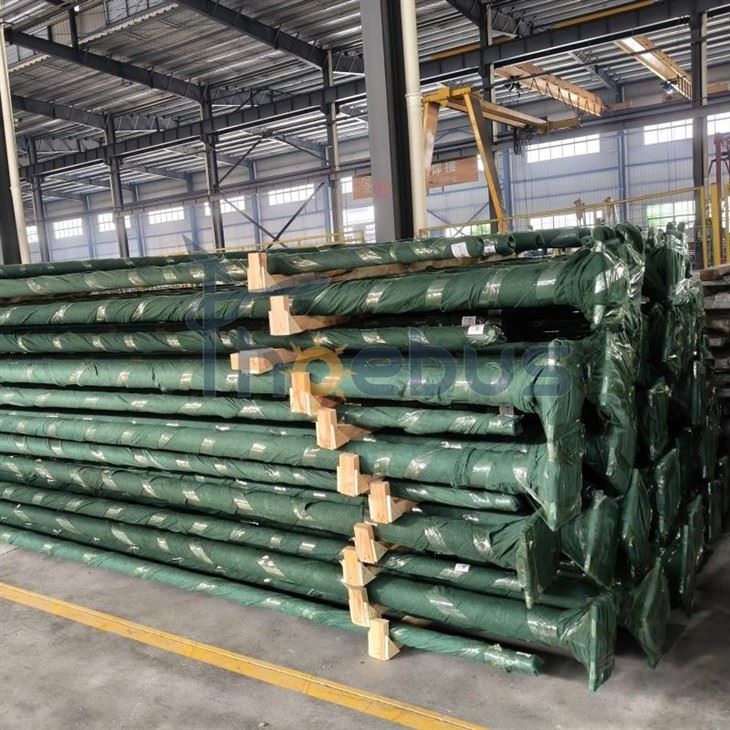

PACKING CASE

loading and shipping

ODM/OEM SERVICE

1. Customization of sizes
Public light poles can be customized in height, wall thickness, taper, and flange base dimensions to suit various road lighting requirements.
2. Customized pole shapes
Straight poles, single/double curved poles, and irregular-shaped landscape art poles can be customized according to drawings.
3. Surface Finishes Are Customizable:
There are many powder coating colors to choose from; the pole can be printed with logos and promotional slogans.
4. Customized Functional Structures
Pre-installed mounting holes for monitoring systems, charging stations, and traffic lights; additional access doors and wiring holes can be added.
5. Customizable Overall Solutions
Unique design and modular structure for the project; one-stop design and production for orders of different sizes.



FACTORY

Why choose us-Phoebus



EXHIBITION

exhibition

FAQ

  1. Q: Are you a factory or trading company?

A: We are factory established for 12 years, specialized in outdoor lights.



2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Yangzhou City, Jiangsu Province, China, about 2 hours drive from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!



3. Q: What's your main product?

A: Our main product is Solar Street Light, LED Street Light, Garden Light, LED Flood Light, Light Pole And All Outdoor Lighting



4. Q: Can I try a sample?

A: Yes. Samples for testing quality is available.



5. Q: How long is your lead time?

A: 5-7 working days for samples; around 15 working days for bulk order.



6. Q: What's your shipping way?

A: By air or sea ship are available.



7. Q: How long is your warranty?

A: 5 years for outdoor lights.



ABOUT US

A_



Material Commonly Q345B/A572, Q235B/A36, Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Height 4M 5M 6M 7M 8M 9M 10M 12M
Dimensions(d/D) 60mm/140mm 60mm/150mm 70mm/150mm 70mm/170mm 80mm/180mm 80mm/190mm 85mm/200mm 90mm/210mm
Thickness 3.0mm 3.0mm 3.0mm 3.0mm 3.5mm 3.75mm 4.0mm 4.5mm
Flange 260mm*12mm 260mm*14mm 280mm*16mm 300mm*16mm 320mm*18mm 350mm*18mm 400mm*20mm 450mm*20mm
Tolerance of dimension ±2/%
Minimum yield strength 285Mpa
Max ultimate tensile strength 415Mpa
Anti-corrosion performance Class II
Against earthquake grade 10
Color Customized
Surface treatment Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II
Shape Type Conical pole, Octagonal pole, Square pole, Diameter pole
Arm Type Customized: single arm, double arms, triple arms, four arms

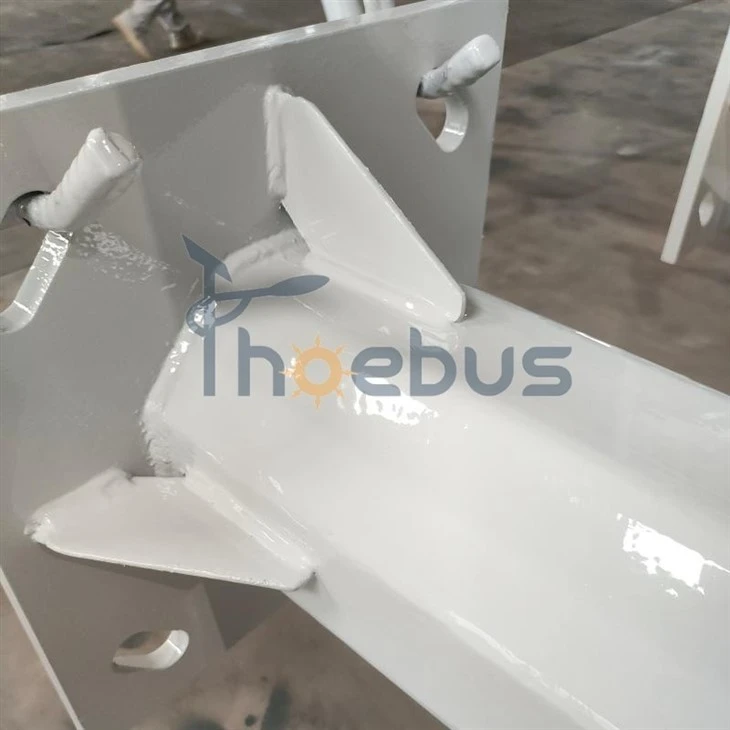

Stiffener With a big size to strengthen the pole to resist the wind
Powder coating The thickness of powder coating is 60-100 μm. Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance. The surface is not peeling even with a blade scratch (15×6 mm square).
Wind Resistance According to local weather conditions, the General design strength of wind resistance is ≥150KM/H
Welding Standard No crack, no leakage, no welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.
Hot-Dip Galvanized The thickness of hot-galvanized is 60-100um. Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. The designed life of the pole is more than 25 years, and the galvanized surface is smooth and the same color. Flake peeling hasn't been seen after the maul test.
Anchor bolts Optional
Material Aluminium,SS304 is available
Passivation Available
